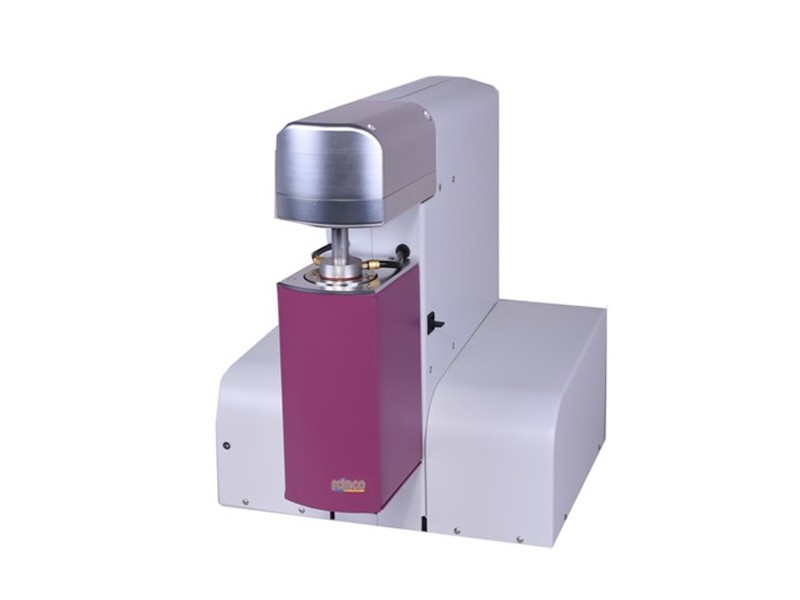

TGA N-1000
Thermo Gravimetric Analyzer

TGA is an instrument to analyze the component by changing of the weight when the heating or cooling on the sample.

．Temp. range:RT~1000℃
．Heating rate:0.1~300℃/min
．Weight range:0~400mg
．Sensitivity:0.1ug

1. To get the more stabilized weight reading by the horizontal position for samples
2. Unique smaller volume could change the temp easier
3. Water cooling system for faster and safer concern
4. Connect to FT-IR or MS
5. 4 gas channel

1. Decomposition temp. test
2. Multi component analysis
3. ASHtest
4. Oxidation test
5. Reaction gas affect to the material
6. moisture content and Volatile content
